₹ 60000 exc. gst
CAS No.: 7782-42-5
New SKU: GNAMOD01
Old SKU: GnAm18a-0.5g
Reduced Graphene Oxide-NH-(CH2)17-CH3

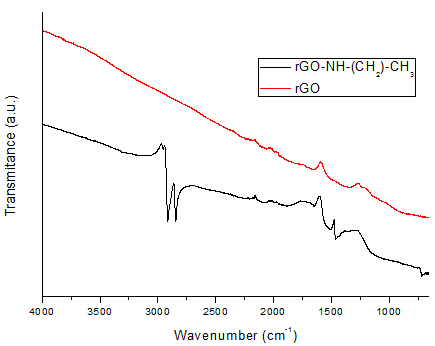

FTIR Spectroscopy: Attenuated Total Reflectance (ATR)
Assignment (cm-1): 2915‚ 2846‚ 1538 and 1465.

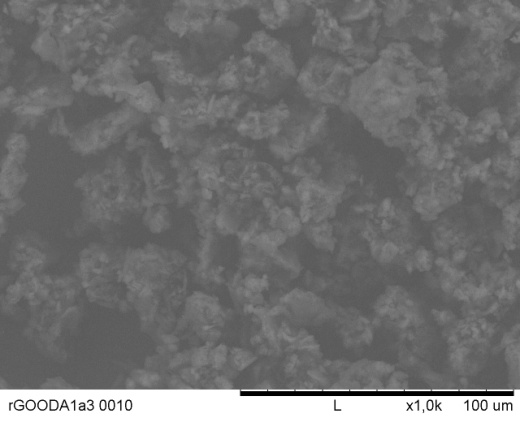

SEM images for Reduced Graphene Oxide-NH-(CH2)17-CH3
XRD
XRD pattern of rGO and rGO-NH-(CH2)17-CH3. The peak at 2θ = 5.1º is related to the longer interplanar distance of graphene due to octadecylamine chains.

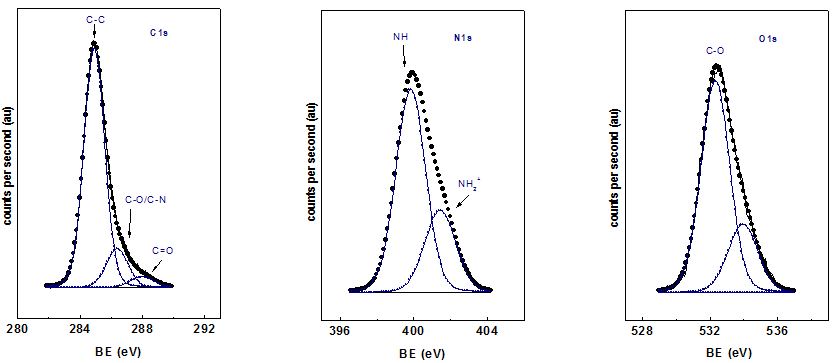

XPS

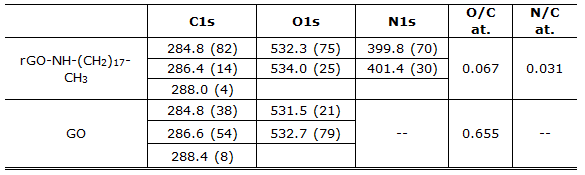

Binding energies (eV) and deconvoluted peaks (%) for C1s‚ O1s and N core levels.
Elemental Analysis
Solid-state 13C NMR

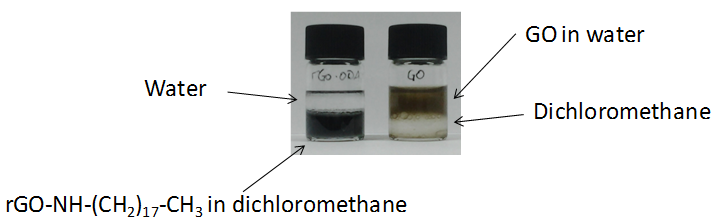

Distribution of rGO-NH-(CH2)17-CH3 (left) and graphene oxide (right) in a mixture of water (up) and dichloromethane (down) showing hydrophobicity of rGO-NH-(CH2)17-CH3.
Amount of ODA
In order to estimate the amount of octadecylamine chains in rGO-NH-(CH2)17-CH3 a reaction with 4-bromobenzyl chloride was performed and the Br amount was quantified by the Schöniger flask test. The value obtained corresponds to 0.1 mmol of octadecylamine/g.
Conductivity
Conductivity of pressed pellets of rGO-NH-(CH2)17-CH3 is 6.36 S/m
To check out the list of all products visit on https://yaavikmaterials.com/nanoparticles-2/
To visit homepage click on https://yaavikmaterials.com/
The materials are synthesized in fully controlled environment and with proven parameters giving the best desired results. For more information and customized requirements contact info@yaavikmaterials .com
The product is also available on https://www.yaavikmaterials.org/ , https://yaavikmaterials.in/
| Packaging | 500 mg |
|---|
