₹ 105000 exc. gst
CAS-No.: 110-82-7 (Cyclohexane), 7681-49-4(Sodium fluoride)
NOTE: Shelf life is 6 months; it is recommended to use as soon as possible.
We also provides larger package size. Contact us for more information.
1. Characterizations
| Composition | Oil Dispersible Upconverting Nanoparticles | |
| Diameter | 25 nm | |
| Appearance | Solution in yellowish or approaching colorless | |
| Crystal formula | NaYREF4(RE: Yb, Er, Tm, Gd, Mn, Lu) | |
| Concentration | 5 mg/mL | |
| Solvent | Cyclohexane | |
| Dispersity of powder | Cyclohexane, n-hexane, methylbenzene, chloroform and other non-polar organic solvents, poorly soluble in water | |
| Excitation wavelength | 975 nm | |
| Sensitizer | Ytterbium (Yb3+) | |
| Activator | Emission wavelength | Fluorescence |
| Thulium (Tm3+) | 365/475 nm | Purple-Blue |
| Erbium (Er3+) | 545/660 nm | Green-Yellow |
| Thulium (Tm3+) | 804 nm | Near-infrared |
NOTE: Shelf life is 6 months; please use as soon as possible.
Fluorescence image of Oil Dispersible Upconverting Nanoparticles
(upon excitation at 975 nm for reference only)
Upconversion emission spectra of Oil Dispersible Upconverting Nanoparticles
(a) 365/475nm, b) 545/660 nm, c) 804 nm upon excitation at 975 nm for reference only

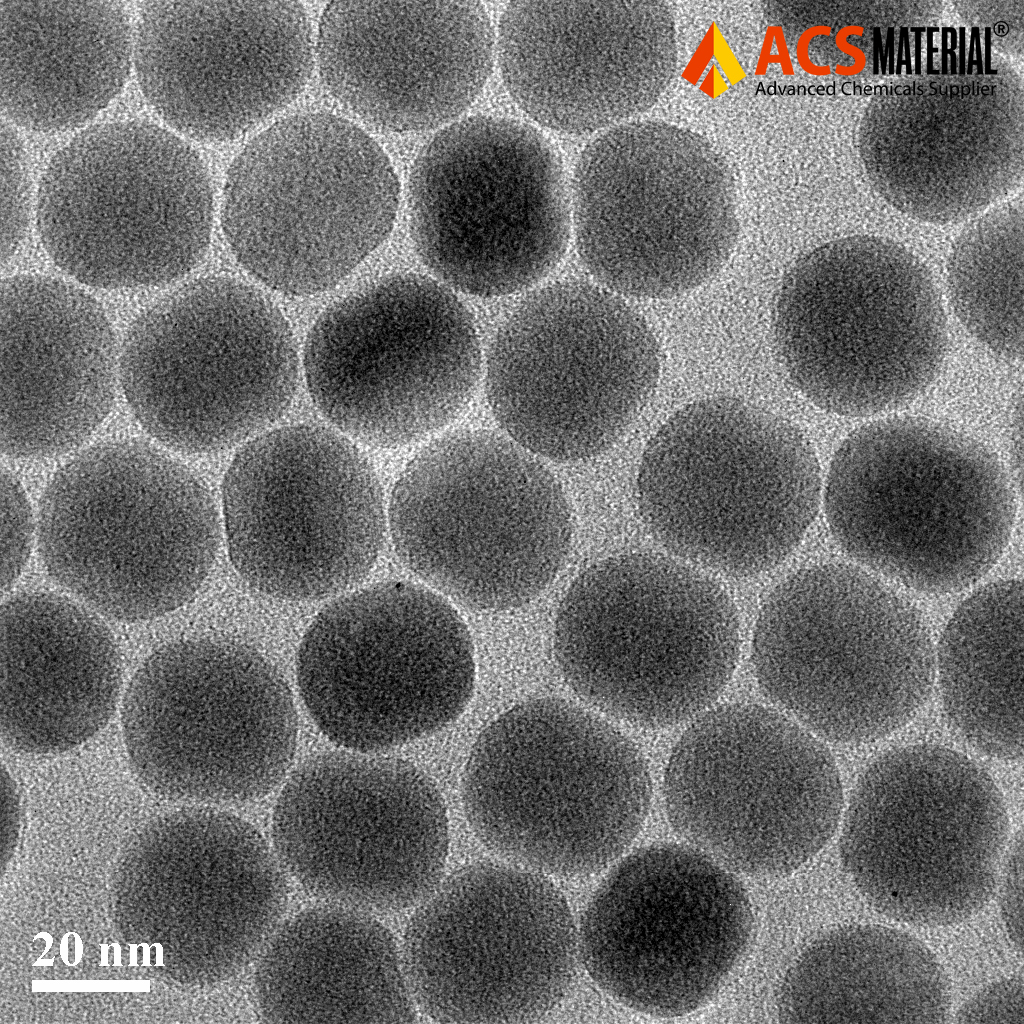

TEM image of ACS Material Oil Dispersible Upconverting Nanoparticles

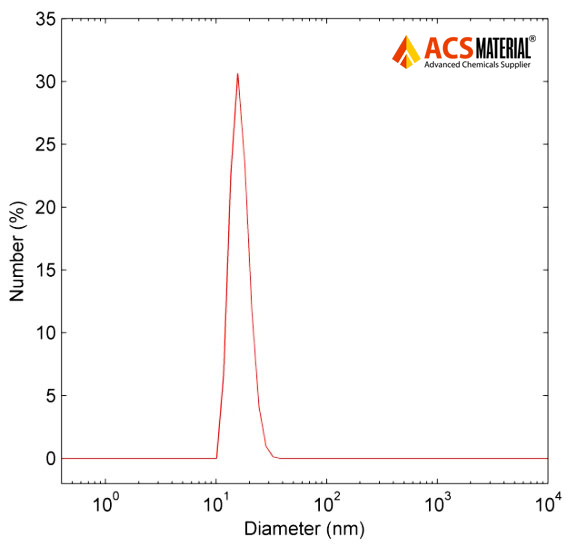

Typical particle size distribution image of Oil Dispersible Upconverting Nanoparticles
(Dynamiclight Scattering Measurement)
To check out the list of all products visit on https://yaavikmaterials.com/ quantum-dots-upconverting-nanoparticles /
To visit homepage click on https://yaavikmaterials.com/
The product is also available on https://www.yaavikmaterials.org/ , https://yaavikmaterials.in/
| Type | 365/475 nm (Purple-Blue), 545/660 nm (Green-Yellow), 804 nm (near IR) |
|---|---|
| Packaging | 10 mg |
